The 40-Port Smart AC Mobile Charging Cart (product model SEMR40) is a battery charging and management system for mobile equipment.
The 40-Port Smart AC Mobile Charging Cart includes a multitude of powerful electronic functions such as smart activation, total power protection, overload protection, and smart fans that allow users to charge their devices without worry.

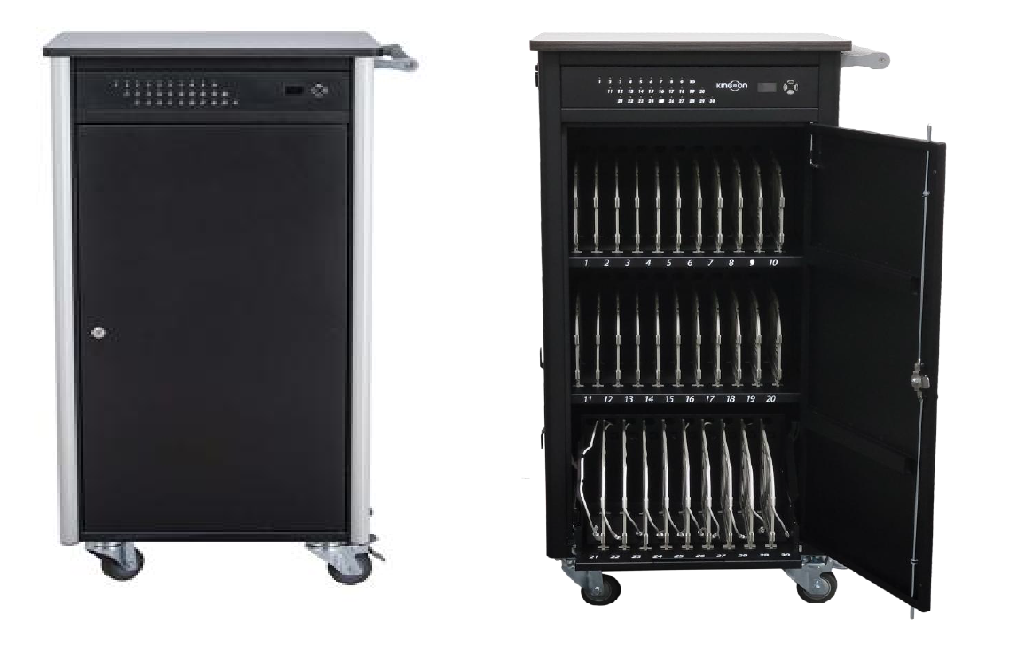

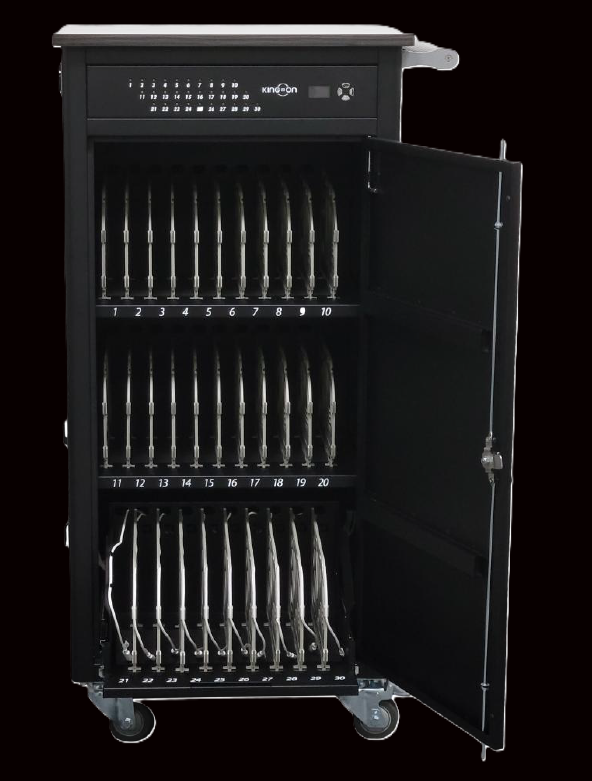

The 40-Port Smart AC Mobile Charging Cart is built with solid cold rolled steel and agile omnidirectional caster wheels. This is the optimal solution for mobile device storage in schools or organizations as it can protect valuable equipment while making their transportation a simple task. Independent power supply racks and intuitive cable design means it's easy to organize cables and equipment for convenient use.
| Product | Mobile Charging Cart |
|---|---|
| Display | OLED Display

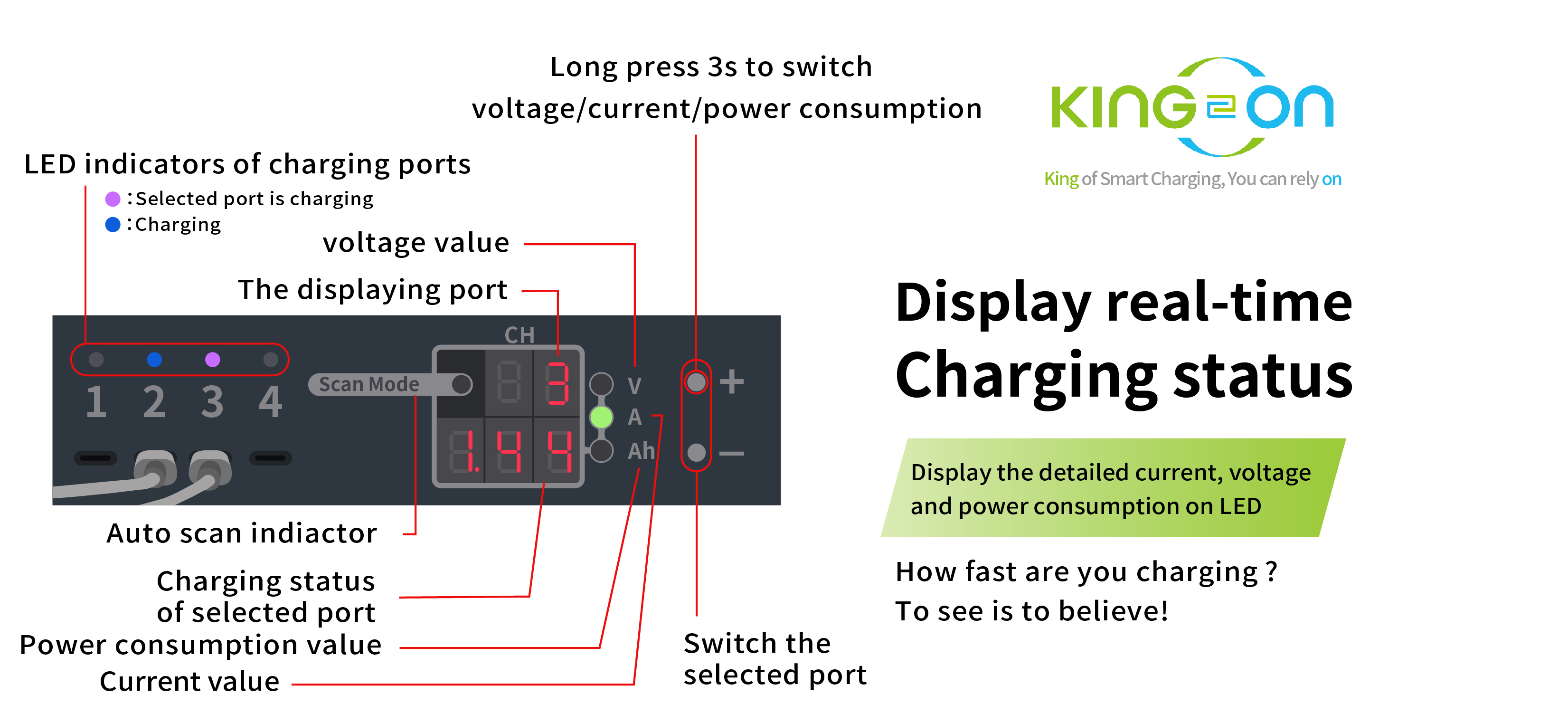

Displays the current and voltage of a PDU port or total current of all PDU ports Display mode: Time settings, schedule settings LED Indicators Blue Indicator: A lit indicator means the port is currently charging; a flashing indicator means output has been cut off due to overload Red Indicator: Designates the PDU port |
| Power | Input port
AC 100V~120V, 50/60Hz; Max output current: 10A±10% limit. External power outlet X 3 AC 100V~120V, 50/60Hz; Max output current: 3.5A±10% limit |
| Protective action
| 1. When single socket output exceeds OCP current, PDU turns off output current. 2. When the total output current of all sockets exceeds TCP, PDU will close the current of sockets 4, 5, 6, if it is still exceeding TCP, PDU will close the largest output of sockets 1, 2, 3. Until the total output does not exceed the limit. 3. When the total current exceeds 13.5A±10%, the PDU get into the TCP mode, the PDU is detected every 10 minutes, and it is detected whether the current is lower than 13.5A±10%, the OLED display issues a warning "TCP" sign, then long press the left and right buttons, and then detect the current again. 4. When single port cause TCP active->Stop Charging until 10 times in 10 minutes, PDU will stop detection and stop charging. OLED display issued a warning "OCP Remove Load", Long press the left and right button to release warning. |
| Cooling Fans | 2 X 120x120x25mm cooling fans |
| Wheels | 4 omnidirectional wheels (4 inch casters, 2 are lockable) |
| Supported Devices | Laptop computers 15.6 inches or below, Chrome books and tablets of all brands (please refer to storage space dimensions)
|
| Charge Type | Power outlets (includes protection against power overload and short circuits) |
| Anti-theft mechanism | Anti-theft locks on front and rear doors
|
| Storage device placement/charged amount | 40 devices
|
| Storage space dimensions | 34 x 380 x 265 mm (thickness x depth x height)
|
| Dimensions (width x depth x height) | 730 x 585 x 1140 mm (includes casters, hidden handles)
|
| Package Dimensions | 800 x 640 x 1165 mm
|
| Package Dimensions | 800 x 640 x 1165 mm
|
| Product Weight | Less than 80 Kg |

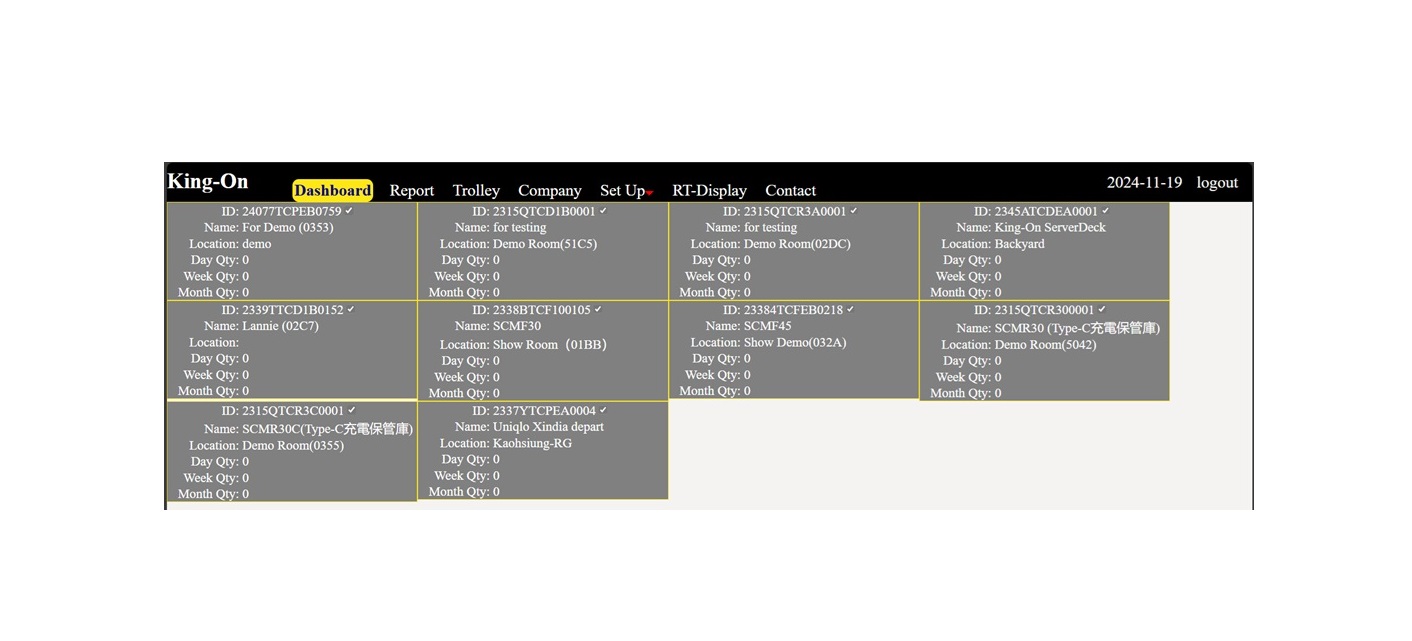

The "King-On Trolley&IPSS - Cloud Platform" is a service designed to work in conjunction with charging trolley/OPSS. Its primary function is to provide real-time and log information about charging trolley on the cloud and offer a comprehensive set of management and integration features. This service is specifically designed for administrators who need to manage multiple charging trolleys/stations and a large number of smart devices within them. The platform aims to provide the following functions for administrators:
1. Asset Management: Manage charging trolleys and smart devices.
2. Protection of the battery of smart devices.
3. Big data analysis with hints for problematic batteries.
4. Setting charging times for off-peak charging to meet ESG carbon reduction requirements.
5. Using big data on vehicle usage time and frequency for KPIs, evaluating users' use of smart devices
6. Utilizing big data to understand vehicle usage frequency.
King-On Wireless CMM (Charging Management Module) assists users in connecting King-On CMM by Wi-Fi via laptop, phone or tablet, and users may monitor, manage and operate King-On charging station products by the browsers via their wireless devices. Each CMM is able to manage up to 3 charging stations connected by RS-485 cable, then monitor and manage charging ports (8-20 ports) for each station.
